Mechanical Parking Brake Calipers

Mechanical Parking Brake Calipers - Made from 6061-T6 aluminum, this full floating Mechanical Brake Caliper fills your need for a parking brake when you upgrade the stock calipers and rotors to larger rotors and can no longer use the factory caliper for the parking brake. Designed for use with after market calipers and rotors, the new Mechanical Caliper can be configured for rotors width from .375" to 1.375". The caliper weight is only 2 pounds, and the size is 3.50" (w) x 2.75" (h) x 4.50" (d), and are anodized to give them a long lasting finish. Custom logo can be laser engrave on the face as an option. There are two Options available for making your installation easier 1.) Optional Bracket kit has 3.50" mount spacing with Stainless Steel thread inserts in either Inch or Metric thread. 2.) E-brake Cable Bracket mounts, cable ends vary greatly (one size does not fit all) so you can give us a drawing of your cable end, and we will make a bracket mount for you or you can use our optional cable bracket kit which we use on Dodge Vipers. Specs and cost for custom brackets available on request.



IPS080-R (right hand pull) ..................... $185.00

IPS080-L (left hand pull) ....................... $185.00

IPS080-BK (Optional General Bracket Set) ......... $ 35.00/Set

IPS080-CB1 (Optional Cable Bracket Set) ........... $ 30.00/Set

IPS080-CB2 (Optional Cable Bracket Set) ............ $ 35.00/Set

IPS080-CB3 (Optional Cable Bracket Set) ............ $ 40.00/Set

IPS081- Replacement Brake Pad Set (1 Caliper).... $ 24.50/Caliper

Custom Brackets can be make, Call for pricing.

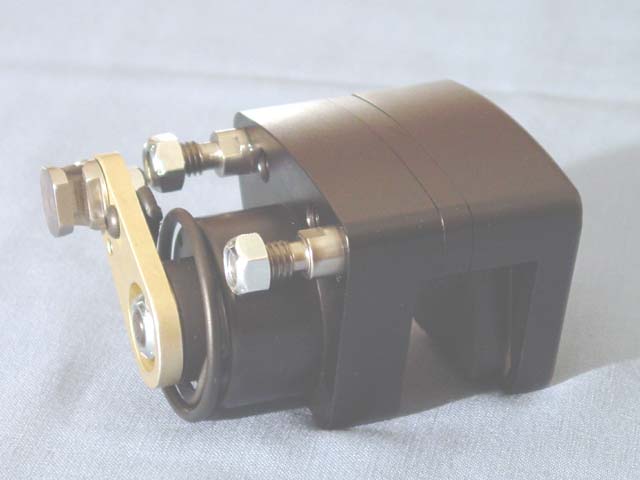

Calipers shown with optional bracket kit

Optional Caliper Mount Brackets

Optional Cable Brackets

Replacement Brake Pad Set (for 1 Caliper)
